Race Technology Dash2 LCD Digital Programmable Display

The DASH2 is one of Race Technology's most sought after products whether the application is for competition or road vehicles. It is a clear market leader in price and performance. The DASH2's construction is of the highest quality with an aluminium frame and military spec connectors, so it is suitable for both open and closed top vehicles as well as motorcycles.

KEY FEATURES

• ROAD LEGAL - everything required for an MOT or SVA testing including tamper proof odometer, backlit display and mandatory warning lights.
• WATER RESISTANT -  Suitable equally for open top or motorcycle applications or standard cars.

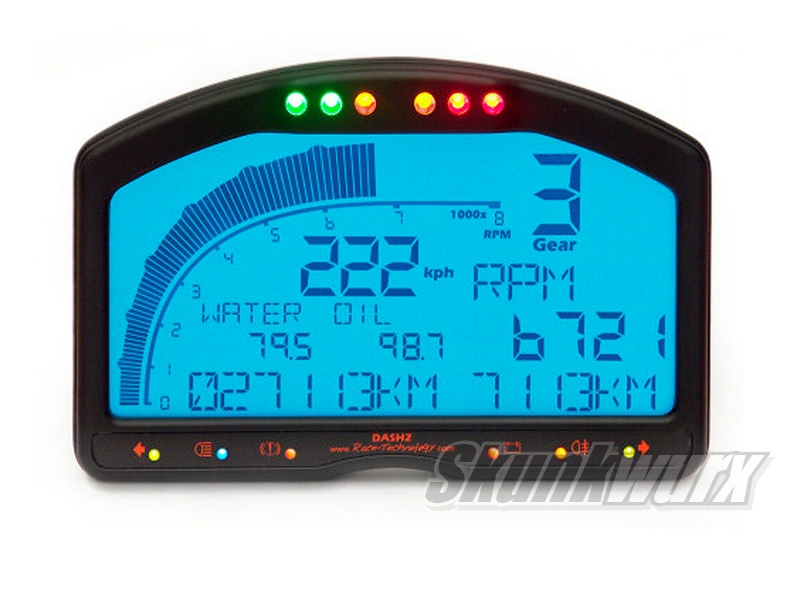

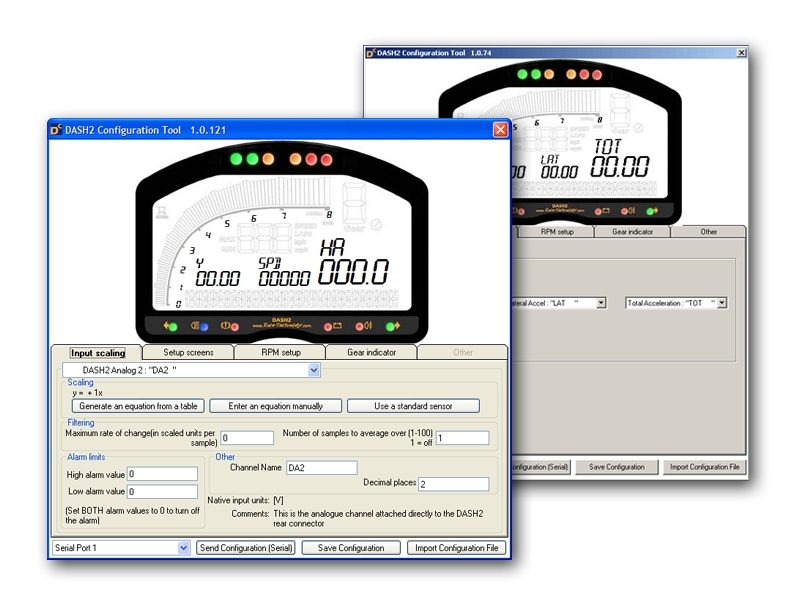

• CUSTOM LCD PANEL - Fully programmable display with the option of 5 different screens/setups to quickly switch between track and road mode, or as required.
• STAND ALONE OPERATION - No need for any external equipment. Connect up to 4 engine/gearbox sensors (such as oil temperature, water temperature, fuel level) as well as RPM and speed
• MPH/miles or KPH/km - Switch between either measuremunt for UK or contintental/statestide driving.
• GEAR POSITION INDICATOR - Calculated either from speed/rev ratios or alternatively by using a gearbox sensor.
• INTEGRATED SHIFT LIGHTS - With switchable operation for daylight/night time use.
• LOTS LOTS MORE.... - Way too many features to list. Full details and spec's on Race Technology's website.

OPTIONAL FEATURES

• Direct ECU Interface - Display information directly from the ECU by connecting with the optional CAN or Serial Interface cables
• Data Logging and Lap/Sector Timing - Connect with a Race Technology data logger to display lap and sector timing and a whole load of other data logging options
• Video Recording - Connect with the Video4 unit to directly control video recording from the Dash2 unit. Combine with the datalogger for a complete video overlay solution.
• External Button Set - Controld the DASH2 and any attached devices (such as the data logger or video recirding unit) directly with the optional external button set

Please note: It is necessary to connect four external buttons to the DASH2 to operate the menu system and select different display screens. Buttons are not supplied with the DASH2 as standard because experience has shown that many customers wish to use their own buttons matching other equipment already installed in their vehicle. Skunkwurx can supply a set of four buttons if required or any momentary 'push to make' button may be used..
