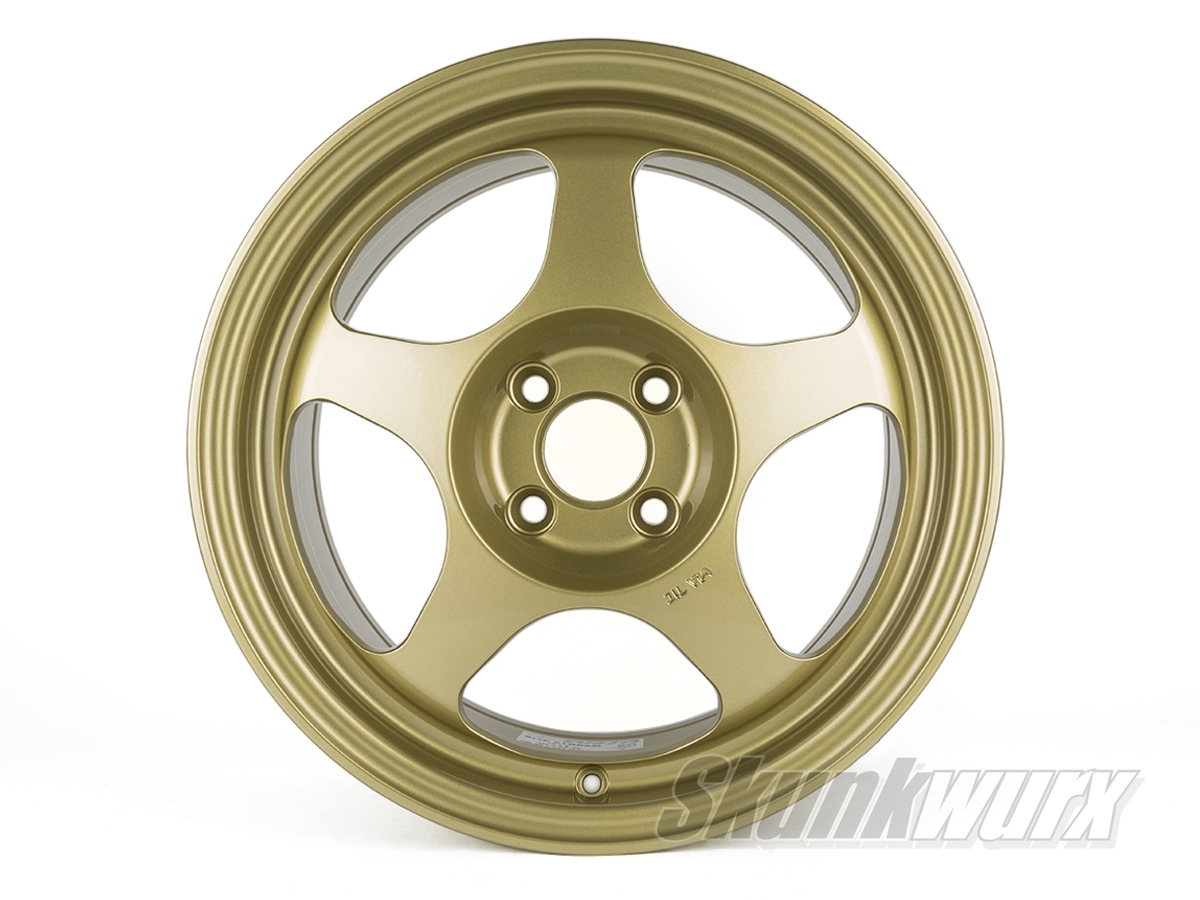

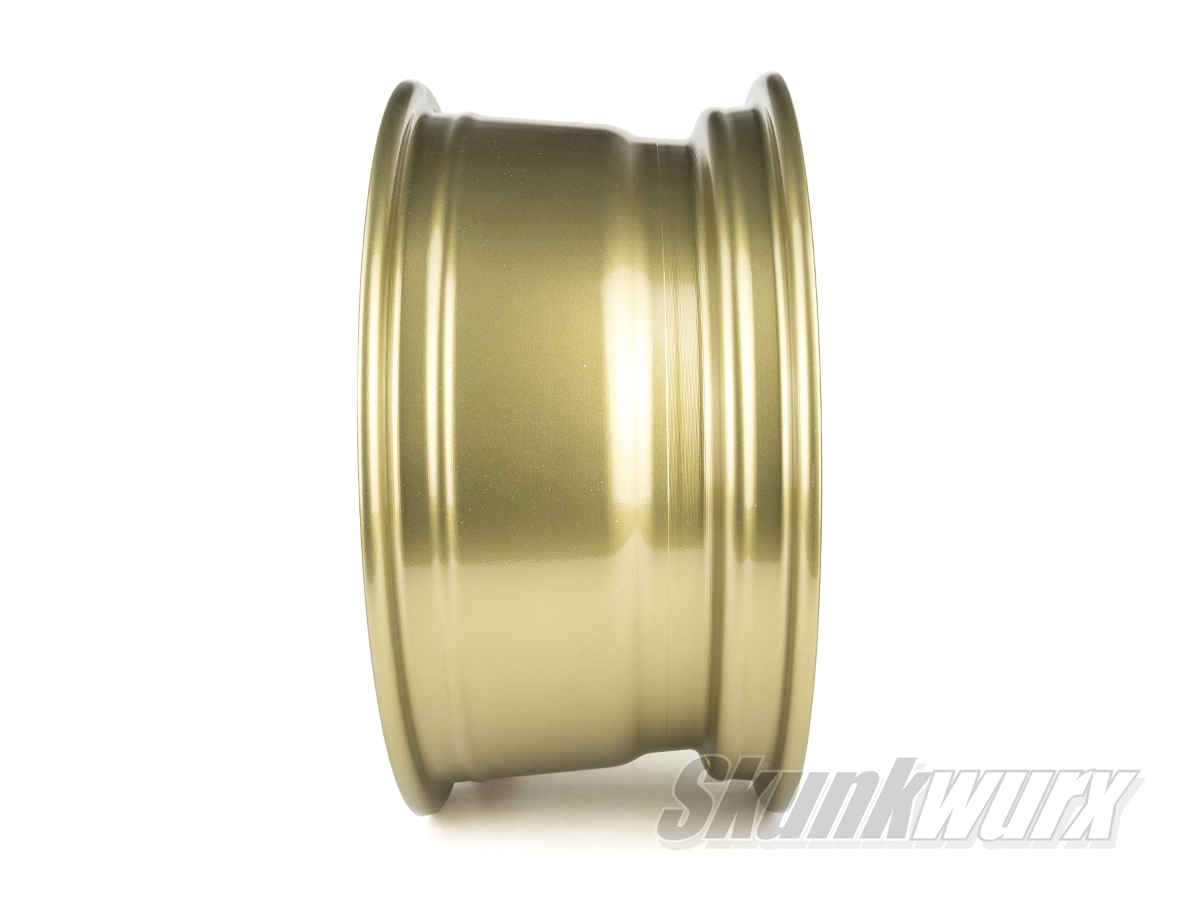

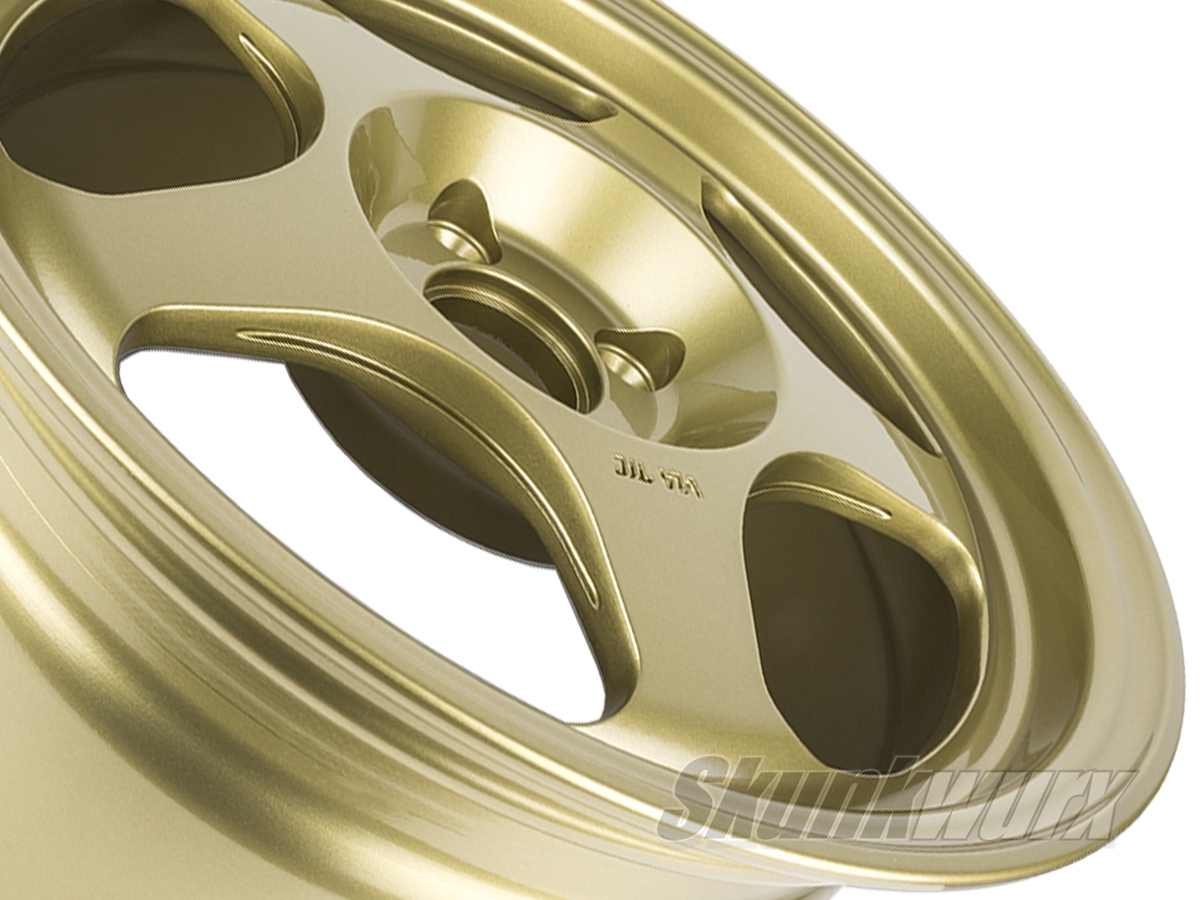

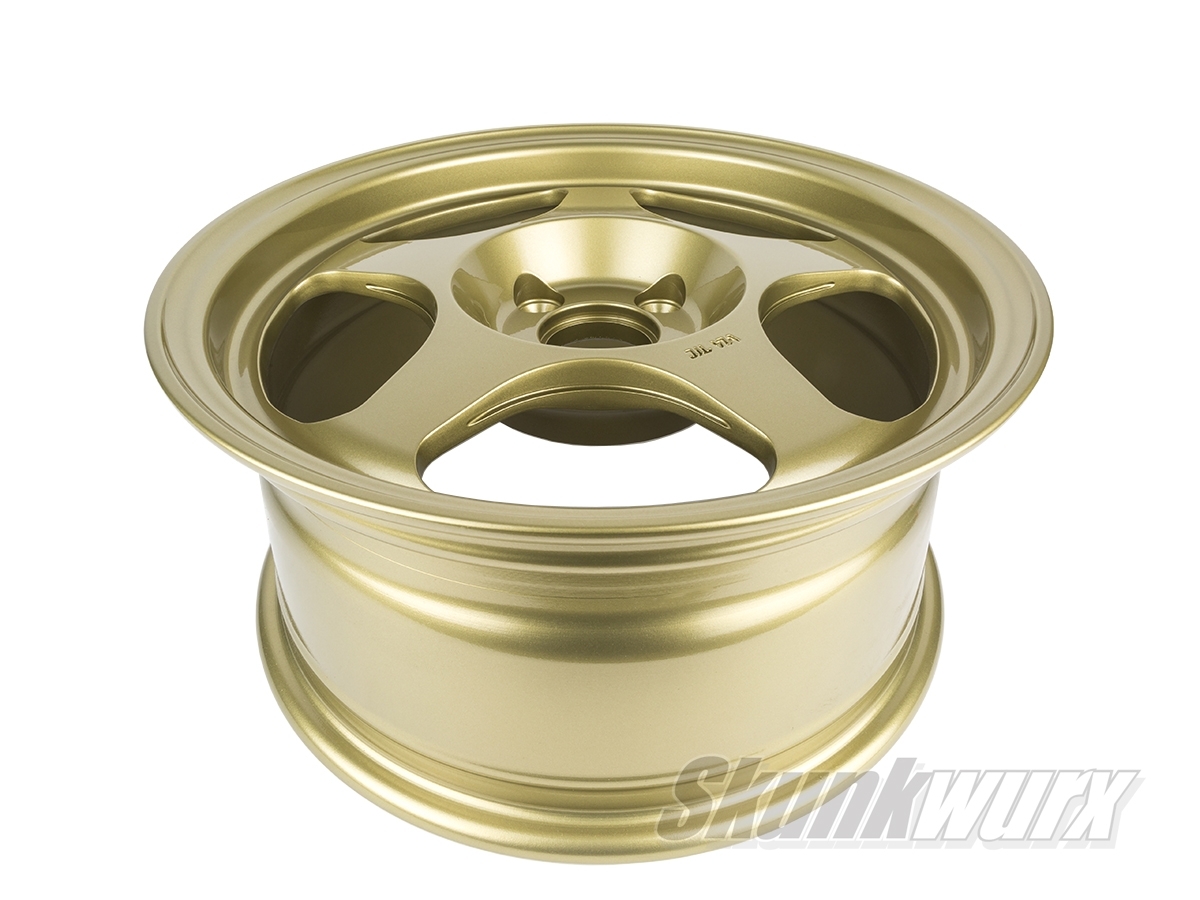

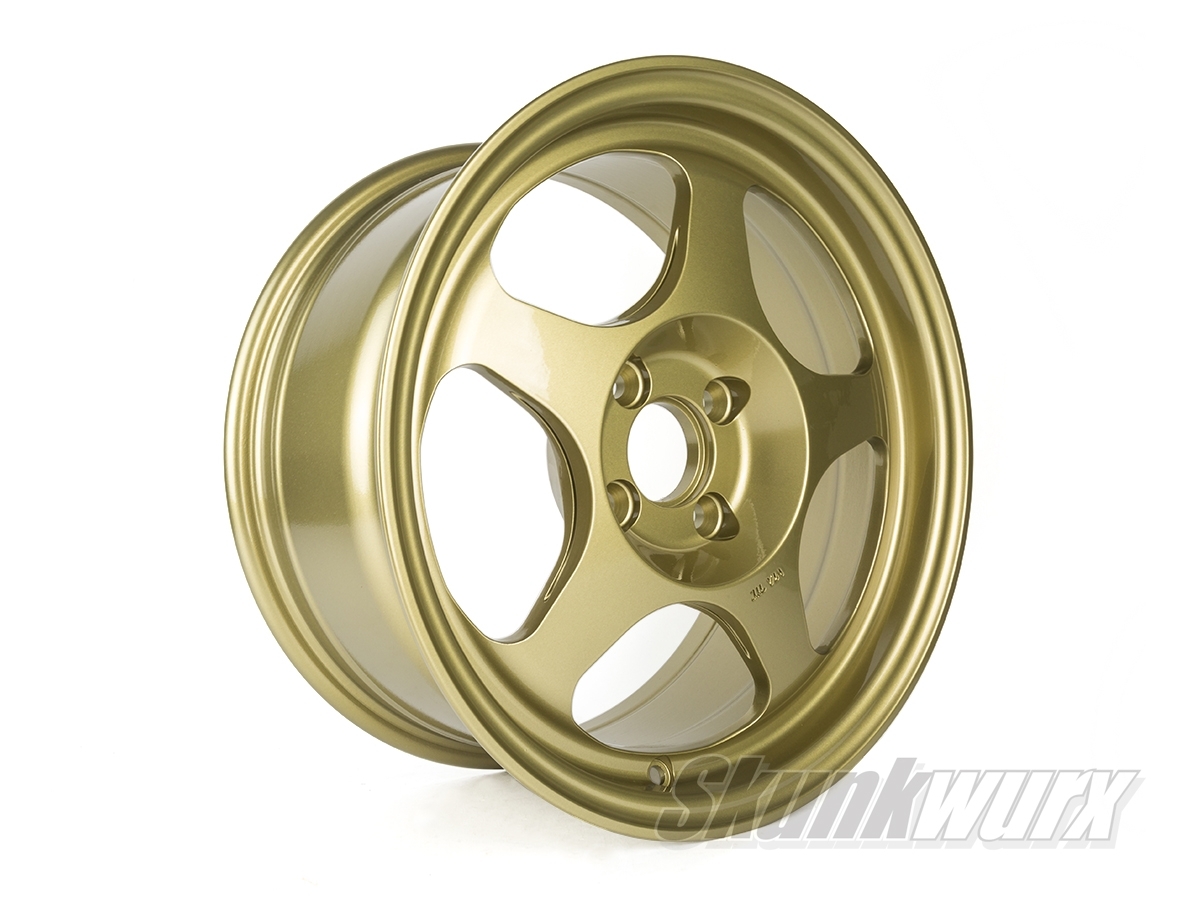

Skunkwurx Lightweight 5-Spoke Wheels for Ariel Atom made by ROTA (Gold)
Full set of lightweight aluminium-alloy 5 spoke alloy wheel set to fit the Ariel Atom (2 x fronts, 2 x rears)
Fits all configurations of Ariel Atoms including those with Alcon brakes without the need for any additional spacers or modifications.
Weighing only 63kg, the 15"x7" (4x95.25 ET31) front alloy wheel allows tyres with widths ranging from 195mm (standard spec) to 225mm to be fitted correctly and legally.
The rear weighs only 7.5kg and the 16"x8" (4x95.25 ET37) alloy wheel allows tyres with widths ranging from 215mm to 245mm to be fitted correctly and legally. The standard rear tyre is 225mm wide however the 245mm is the standard spec on the R spec cars, and is also being use by some on the standard cars.
The wheel is finished in a durable gold powdercoat.
Comparison with other Atom wheels
| Fronts | Wheel Size | Fits Tyre Widths (mm) | Weight (kg) | Bolt Pattern (inches) | Bolt Pattern (mm) |
|---|---|---|---|---|---|
| Team Dynamics | 15 x 7 | 195-225 | 7.1 | 4 x 3.75 | 4 x 95.25 |
| Skunkwurx ROTA | 15 x 7 | 195-225 | 6.3 | 4 x 3.75 | 4 x 95.25 |
| Dymag | 15 x 7 | 195-225 | 5.6 | 4 x 3.75 | 4 x 95.25 |
| Rears | Wheel Size | Fits Tyre Widths (mm) | Weight (kg) | Bolt Pattern (inches) | Bolt Pattern (mm) |
|---|---|---|---|---|---|
| Team Dynamics | 16 x 7 | 195-225* | 7.9 | 4 x 3.75 | 4 x 95.25 |
| Skunkwurx ROTA | 16 x 8 | 215-245 | 7.5 | 4 x 3.75 | 4 x 95.25 |
| Dymag | 16 x 8 | 215-245 | 6.2 | 4 x 3.75 | 4 x 95.25 |
*The 3.5R is supplied by Ariel with 245mm width tyres on the Team Dynamics wheel. Although the tyre will fit, this is outside the generally accepted tyre widths a 7" wheel should be fitted with.
Skunkwurx is the exclusive distributor for these Ariel Atom wheels made by ROTA. ROTA wheels are an established manufacturer and the wheels are rigorously tested to meet the most stringent of standards to bring a quality wheel that will last a lifetime. ROTA supply wheels for a wide variety of high performance applications such as the MX5 Race Series in the UK.
Installation Instructions
Please see the INSTALLATION INSTRUCTIONS in our blog for our guides.
