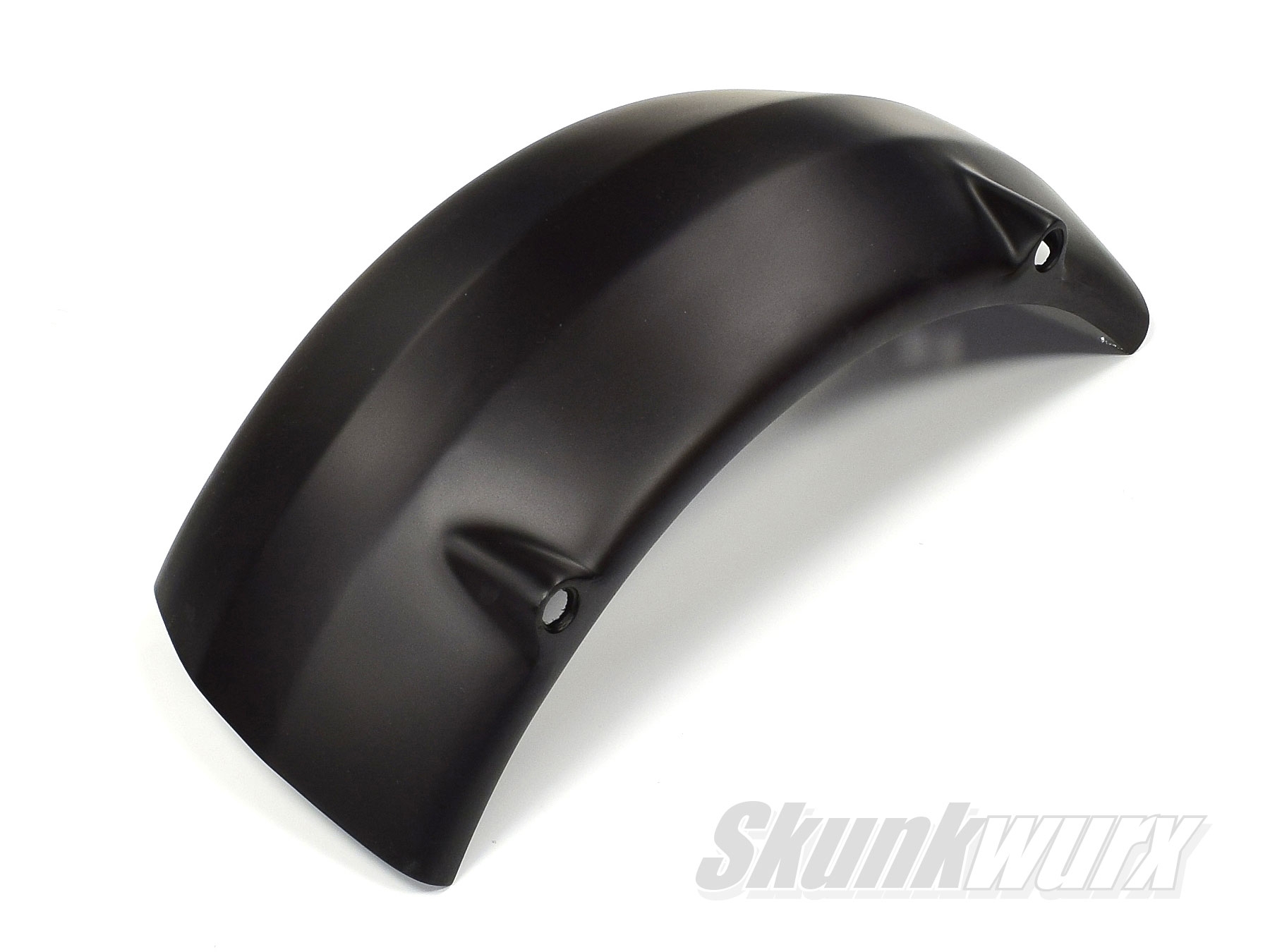

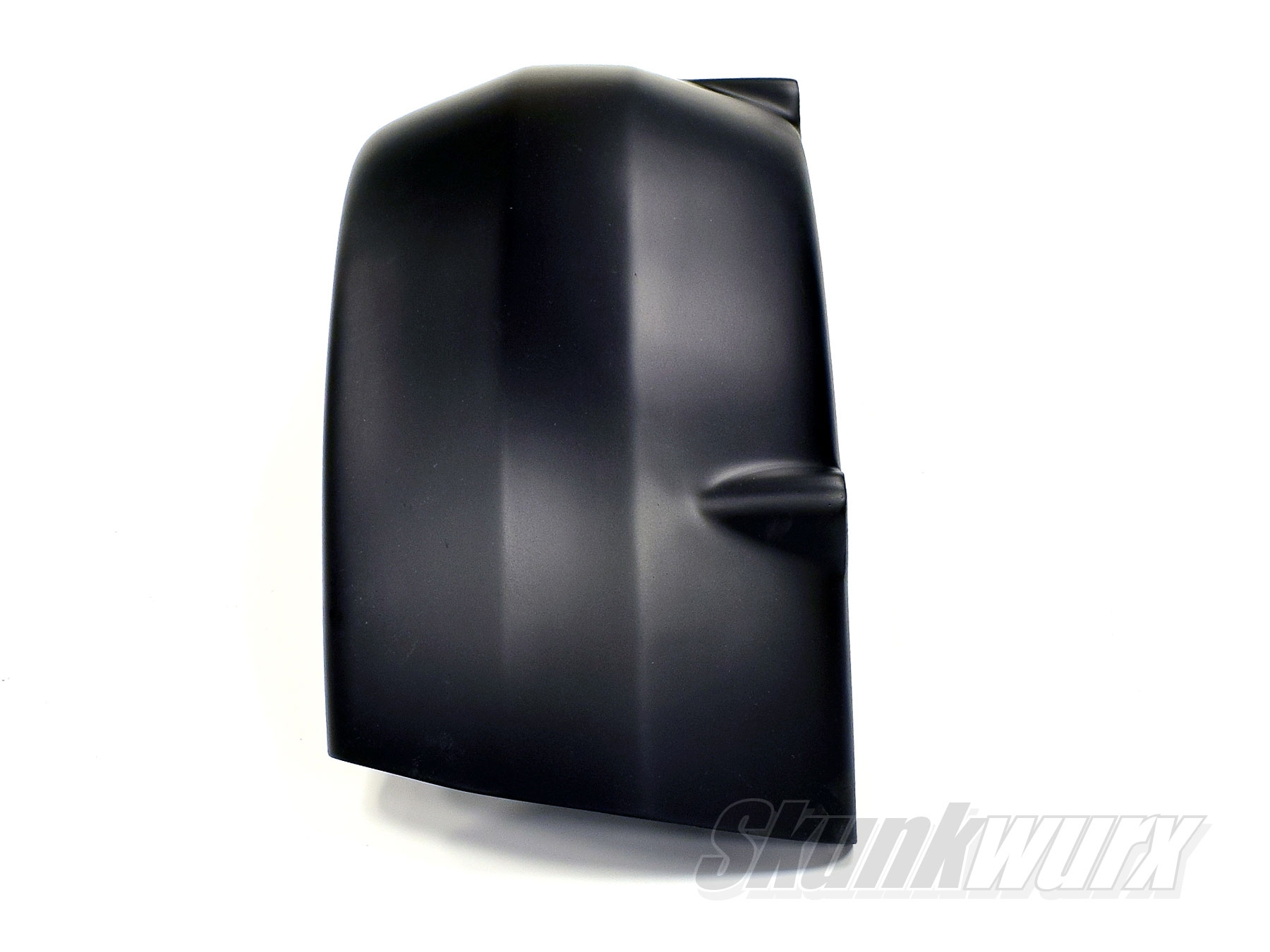

Skunkwurx 'Ninja' 215mm Fiberglass Ariel Atom Mudguard

Skunkwurx 'Ninja' mudguard for the Ariel Atom available in either fibrelglass, composite carbon fibre or full carbon fibre. The mudguard comes with a tapered leading front edge, giving the car a more aggressive and aero look. The sleek contour lines running along the spine of the mudguard are spaced at different widths for the different sized mudguards. When wider mudguards are used on the rear, this gives the optical illusion of significantly wider rear wheels.

Mudguards are advertised as single units, and are interchangeable between left and right side of the car. The carbon version of the mudguards come ready to fit in a 3K Twill weave with a high gloss finish and the fibreglass version comes primed ready to be prepped and painted to your requirements.

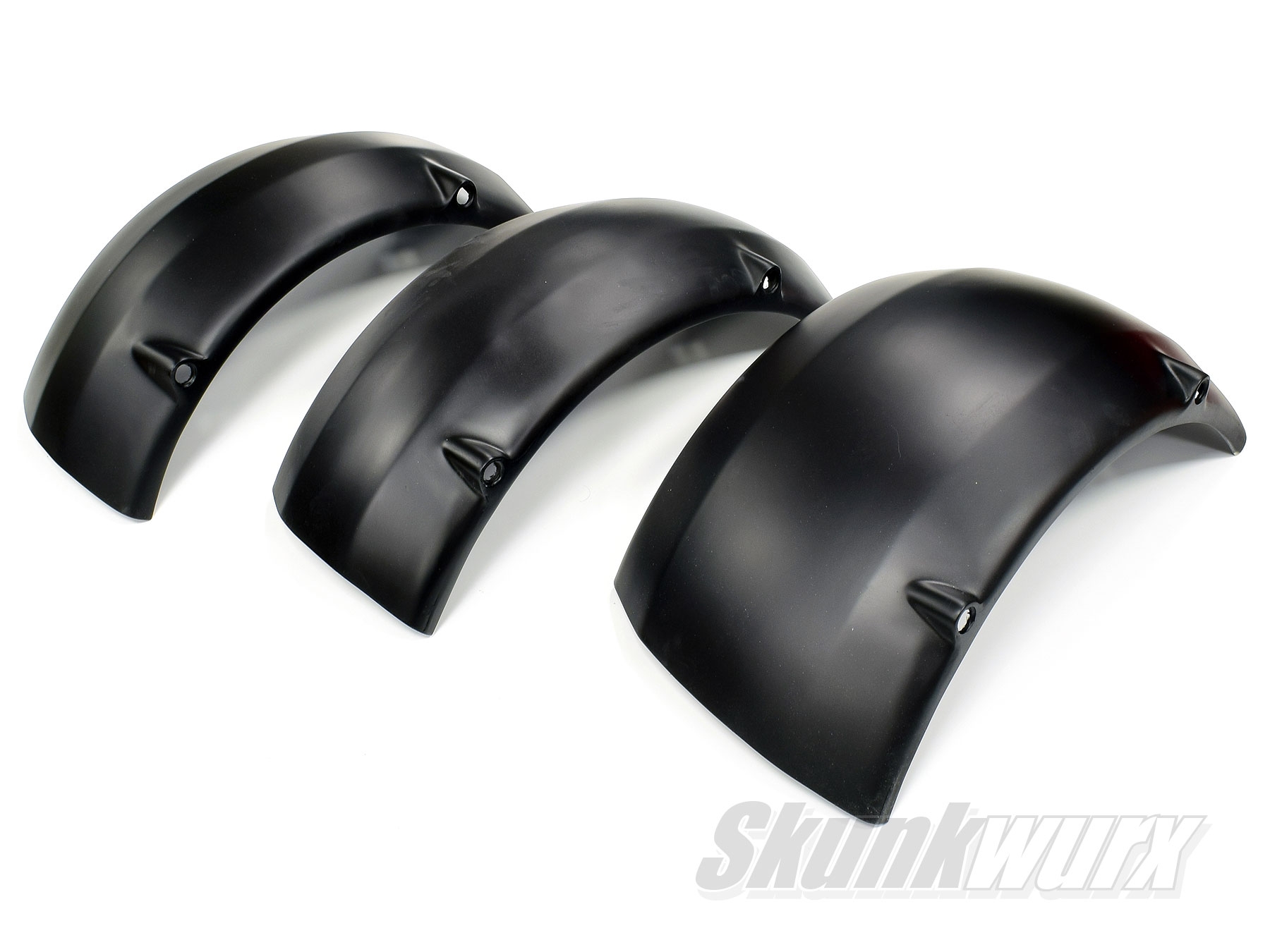

Use the following guide to select the correct size for your requirements:

215mm Wide Mudguards - For use with 15" wheels with tyre widths up to 195mm (Front)
225mm Wide Mudguards - For use with 15"/16" wheels with tyre widths up to 205mm (Front/Rear)
245mm Wide Mudguards - For use with 16" wheels with tyre widths up to 245mm (Rear)
295mm Wide Mudguards - For use with 16" or 17" wheels with tyre widths up to 275mm (Rear)

The wider rear mudguards can also be used on the front if non-standard wider tyres are being used, the fixing holes for both the rear and the front are the same.
